NEMA 24 hybrid easy servo motor and driver
Motor Parameter:
Motor Model | Step angle | Current | Resistance | Inductance | Holding torque | Motor length | Total length | Suitable driver | Encoder resolution |
60HSE3N-D25 | 1.8° | 5.0A | 0.45±10%Ω | 1.8±20%mH | 3.0N.m | 88mm | 109mm | HSS60 | 1000ppr |

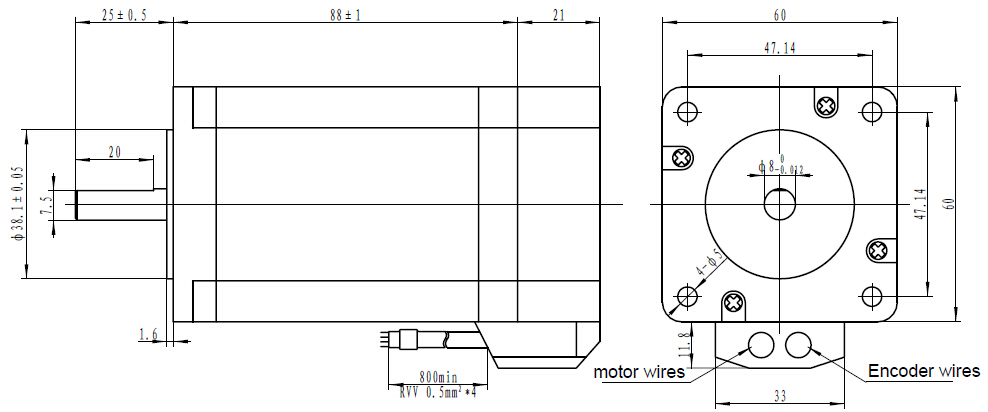

Motor Dimension(mm):
Driver HSS60
Features:
1. Position error correction and never lose steps
2. Quick response and perfect acceleration, High torque at high speed
3. Automatic current adjustment based on load, lower temperature rising
4. Over-current, over-voltage and position ultra difference protection function
5. Pulses response frequency can reach 200KHZ
6. 16 kinds microsteps choice, highest 51200microsteps/rev.
7. Drive nema 24 series 3N.m closed loop stepper motor
8. Voltage range: DC24V~50V
Microstep selection:
Micorstep/rev | SW3 | SW4 | SW5 | SW6 |
Default(400) | on | on | on | on |
800 | off | on | on | on |
1600 | on | off | on | on |
3200 | off | off | on | on |
6400 | on | on | off | on |
12800 | off | on | off | on |
25600 | on | off | off | on |
51200 | off | off | off | on |
1000 | on | on | on | off |
2000 | off | on | on | off |
4000 | on | off | on | off |
5000 | off | off | on | off |
8000 | on | on | off | off |
10000 | off | on | off | off |
20000 | on | off | off | off |
40000 | off | off | off | off |

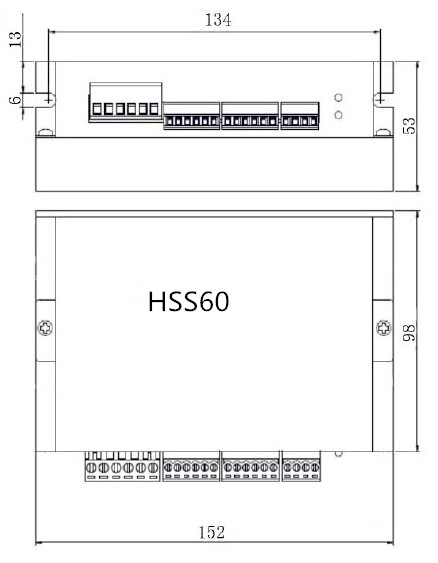

Driver Dimension(mm):

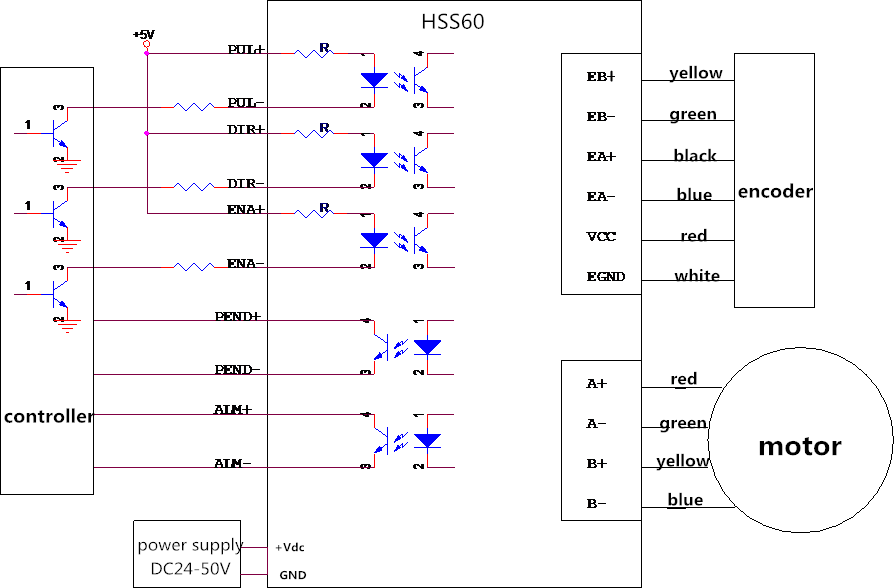

Diagram:
