TB6560 driver board
TB6560 driver board
Quick Detail:

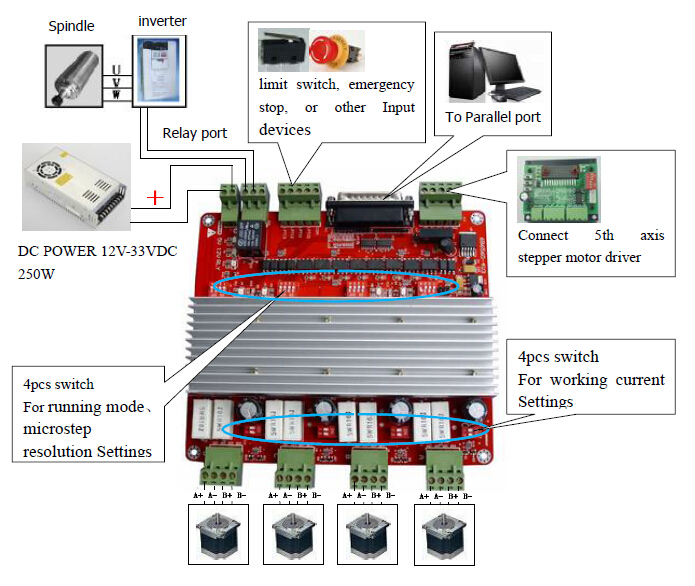

3axis, 4axis TB6560


1.It Can drive 3 pieces, 4 pieces stepper motor running at the same time

2.It has High-speed photoelectric coupler and DC (dc isolation module), Can

strongly protect your computer not to be damaged;

3. One relay, it can be used to control spindle start and stop;

4. standstill current automatically reduced to 50% of the selected dynamic current one second after the last pulse,;

5. 0.8-3.5A (peak) adjustable current、four running mode、microstep resolution(1、1 / 2、1 / 8、1 / 16);

6. Interface with Standard parallel port , support MACH3 or other parallel port software;

7. Four input port, Can connect to the limit switch, emergency stop, or other Input devices;

8. Power supply voltage :12-30VDC.


Suitable for a wide range of stepping motors, from size 39mm to 57mm. It can be used in various kinds of machines, such as engraving machines, laser cutters ,and so on.
