M415D 2 phase stepper motor driver
M415D 2 phase stepper motor driver
Quick Detail:

M415D

Features

1.     Adoption of bipolar constant-current chopper technology

2.     Low-noise, low-vibration and low temperature rising

3.     Voltage 18-40VDC

4.     With 7 stalls output current setting, current range 0.21-1.5A

5.     With 7 stalls microstep subdivision setting

6.     Automatic Half current, motor wires misconnected protection

7.     Internal optical isolation, highest frequency response 200KHZ

8.     Suitable for nema 17, nema 23 stepper motor current under 1.5A



Current selection

Peak

SW1

SW2

SW3

0.21A

off

on

on

0.42A

on

off

on

0.63A

off

off

on

0.84A

off

on

off

1.05A

off

on

on

1.26A

on

off

off

1.50A

off

off

off


 Microstep selection

Pulse/Rev

SW4

SW5

SW6

200

on

on

on

400

off

on

on

800

on

off

on

1600

off

off

on

3200

on

on

off

6400

off

on

off

12800

on

off

off

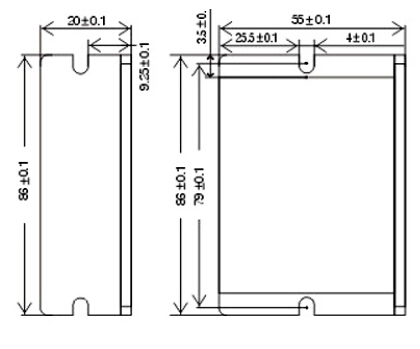

Mechanical Dimension(mm)
