110mm brushless dc motor
110mm brushless dc motor
Quick Detail:
项目   Item规范  Specification
接线方式 Widing type星形或三角形 Star/Delta
电角度 Hall effect angle120 degree electrice angle
轴跳动 Shaft runout0.025mm
径向窜动 Radial play0.02mm/450g
轴向窜动 End play0.08mm/450g
最大径向力 Max radial force法兰方向 600N/20mm from the flange
最大 轴向力 Max axial force180N
绝缘等级 Insulation classClass B
防护等级 IP classIP40
电气强度 Dielectric strength500VDC for one minute
绝缘电阻 Insulation resistance100MΩmin 500VDC

技术参数 (Electrical Specifications


型号 Model

额定电压

(VDC)

  Rated

Voltage

额定电流

(A)

 Rated

 Current

额定功率

(W)

 Rated

Power

额定力矩(N.m)

Rated

Torque

峰值力矩(N.m)

Peak

 Torque

额定转速

(rpm)

 Rated

Speed

机身长

(mm)

Length

重量(kg)

Mass

110BL140-6203103.683641220001407.5
110BL165-6203105.4125561820001659.5
110BL180-6203107.21673824200018010.5
110BL140-6303105.4125541230001407.5
110BL165-6303108.1188361830001659.5
110BL180-63031010.82510824300018010.5

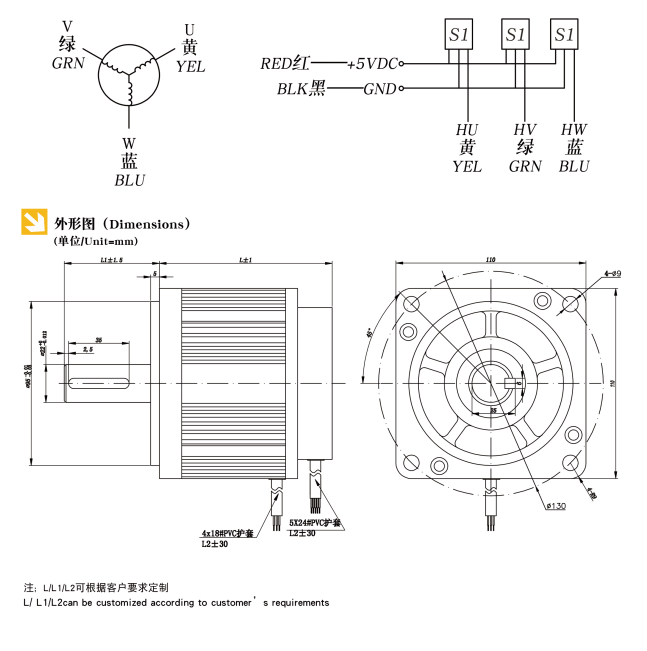

接线说明(Electrical Connection)

序号

Lead No.

引线颜色Lead color

线规

Lead gauge

功能

Function

详细描述Description
1Red/红UL3266/28AWGVCC+5VDCSUPPLY VOLTAGE FOR HALL SENSORS
2Black/黑GNDGROUND FOR HALL SENSORS
3Yellow/黄HALL ASIGNAL OF HALL A
4Green/绿HALL BSIGNAL OF HALL B
5Blue蓝UL3266/22AWGHALL CSIGNAL OF HALL C
1Yellow/黄PHASE UMOTOR PHASE U
2Green/绿PHASE VMOTOR PHASE V
3Blue蓝PHASE WMOTOR PHASE W
