2DM2280A

Features

1. Parameter auto-setup and motor self-test

2. Multi-Stepping inside

3. Small noise, low heating, smooth movement

4. Torque compensation in high speed

5. Variable current control technology, High current efficiency

6. Accelerate and decelerate control inside, Great improvement in

     smoothness of starting or stopping the motor    

7. Storage the position of motor

8. Optically isolated input and compatible with 5V or 24V

9. User-defined micro steps

10. Microstep resolutions and Output current programmable

11. Over current, over voltage and low voltage protection

  12. Green light means running while red light means protection or

      off line

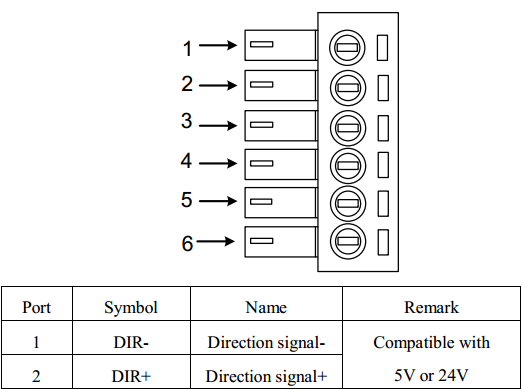

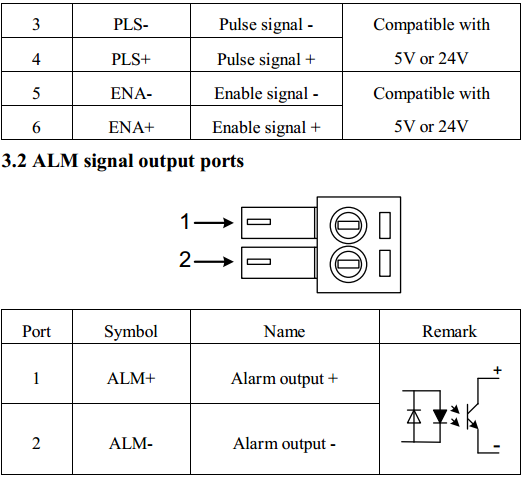

Ports Introduction

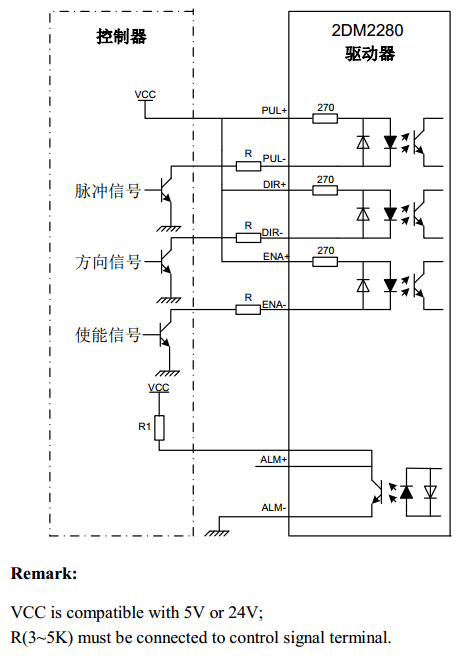

Connections to Control Signal

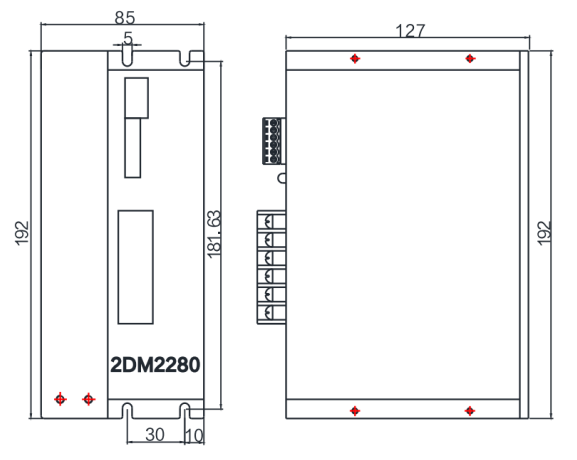

The Driver Dimension
