42mm burshless dc motor
42mm burshless dc motor
Quick Detail:


项目                                                        Item规范                                                                           Specification
接线方式 Widing type星形或角形 Star/Delta
电角度 Hall effect angle120 degree electrice angle
轴跳动 Shaft runout0.025mm
径向窜动 Radial play0.02mm/450g
轴向窜动 End play0.08mm/450g
最大径向力 Max radial force法兰方向 28N/20mm from the flange
最大 轴向力 Max axial force10N
绝缘等级 Insulation classClass B
防护等级 IP classIP40
电气强度 Dielectric strength500VDC for one minute
绝缘电阻 Insulation resistance100MΩmin 500VDC


技术参数 (Electrical Specifications

型号 Model额定电压  (VDC)     Rated      Voltage 额定电流       (A)          Rated      Current  额定功率       (W)        Rated     Power额定力矩(N.m)    Rated     Torque峰值力矩(N.m)        Peak      Torque   额定转速          (rpm)            Rated        Speed机身长(mm)  Length重量   (kg)  Mass
42BL50-230241.8310.10.33000510.35
42BL70-230243.4620.20.63000710.55
42BL90-230245.2940.30.93000910.65
42BL50-340361.6420.10.34000510.35
42BL70-340363.1840.20.64000710.55
42BL90-340364.61250.30.94000910.65

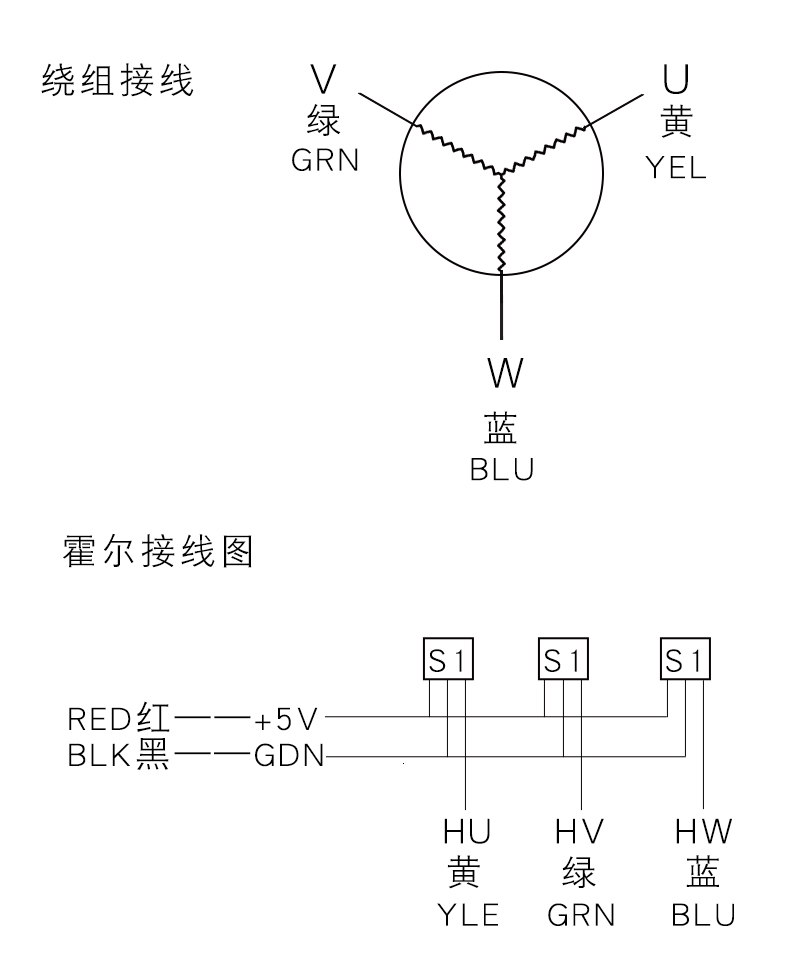

接线说明(Electrical Connection)

序号              Lead No.引线颜色Lead color线规                                      Lead gauge功能              Function详细描述                                                                                         Description
1Red/红UL3266/28AWGVCC+5VDCSUPPLY VOLTAGE FOR HALL SENSORS
2Black/黑GNDGROUND FOR HALL SENSORS
3Yellow/黄HALL ASIGNAL OF HALL A
4Green/绿HALL BSIGNAL OF HALL B
5Blue蓝UL3266/22AWGHALL CSIGNAL OF HALL C
1Yellow/黄PHASE UMOTOR PHASE U
2Green/绿PHASE VMOTOR PHASE V
3Blue蓝PHASE WMOTOR PHASE W

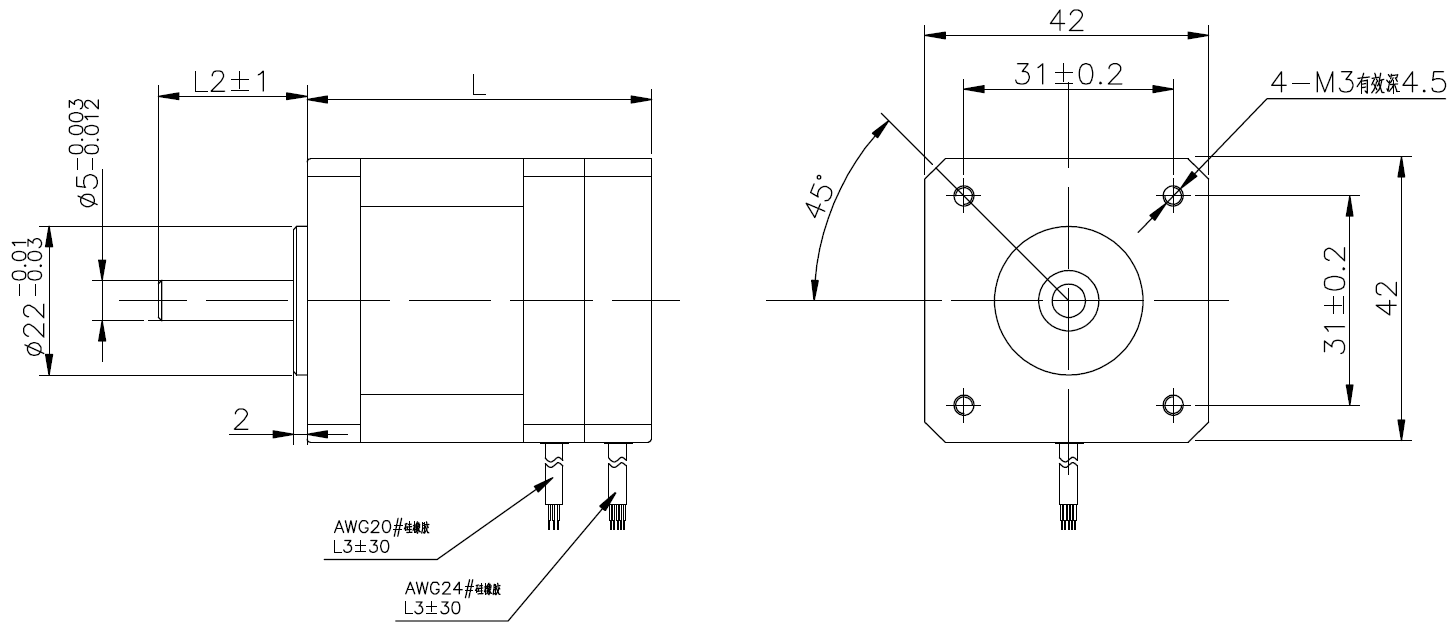

外形图(Dimensions)(单位/Unit: mm)
