nema 34 geared stepper motor
nema 34 geared stepper motor
Quick Detail:

Nema 34 planetary gearbox specification


First stageSecond stage
Gear ratio4、5、7、9、1016、20、25、28、35、36、40、45、49、50、63、70、81、90、100
Length (mm)7387
Rated load   (N.m)5080
Max load (N.m)100160
Effiency (%)9694
Blacklash   (arcmin)≤15≤25
Weight (kg)22.5
Rated input speed (rpm)30003000
Max input   speed (rpm)50005000
Protection   class (IP)6565
Lubricationgrease grease
Noise (dB)≤45≤45
Life (hours)~20000~20000

Nema 34 stepper motor specification

Model NoStep
Angle
(°)
Rated
Voltage
(V)
Rated
Current
(A)
Phase
Resistance
(Ω)
Phase
Inductance
(mH)
Holding
Torque
(Kg.cm)
Rotor
Inertia
(g.cm²)
Motor
Length
(mm)
Leads No.Motor
Weight
(Kg)
86HS65-30041.83.3 31.16.52810006541.7
86HS68-40041.81.3 40.331.63512006841.7
86HS78-40041.81.5 40.382.53514007842.3
87HS78-42041.81.9 4.20.4544514007842.3
87HS78-60081.83.0 60.544514007882.3
86HS82-45041.81.4 4.50.322.84515008242.5
86HS82-56081.82.0 5.60.3535015008282.5
86HS100-50041.82.5 50.5468210010043.2
86HS100-50081.82.5 50.5465210010083.2
86HS118-60041.83.6 60.6685270011843.7
86HS118-56081.83.4 5.60.6685270015683.7
86HS156-55041.83.9 5.50.79120400015645.5
86HS156-62041.83.6 6.20.759122400015685.5
Above only for representative products, products of special request can be made according to the customer request.

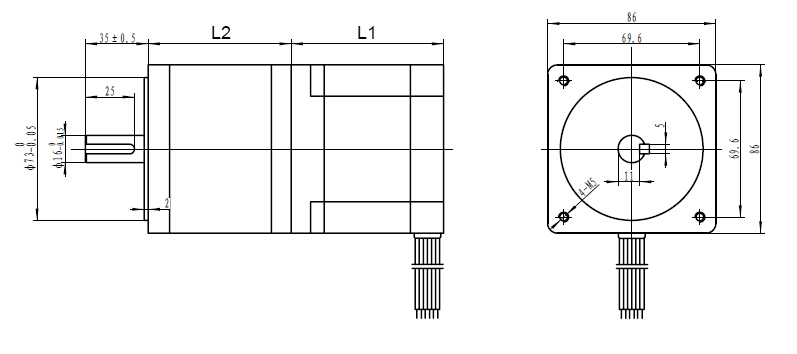

Dimension(mm)
