Quick Detail:

Nema 23 planetary gearbox specification


First stageSecond stageThird stage
Gear ratio3.60、4.2513、15、1847、55、65、77
Length (mm)40.551.863.1
Rated load   (N.m)91524
Max load (N.m)264471
Effiency (%)908173
Blacklash   (arcmin)≤60≤75≤90
Weight (kg)0.70.80.9
Rated input   speed (rpm)300030003000
Max input   speed (rpm)500050005000
Protection   class (IP)656565
Lubricationgrease grease grease
Noise (dB)≤45≤45≤45
Life (hours)~20000~20000~20000

Nema 23 stepper motor specification

Model NoStep
Angle
(°)
Rated
Voltage
(V)
Rated
Current
(A)
Phase
Resistance
(Ω)
Phase
Inductance
(mH)
Holding

Torque
(Kg.cm)

Detent
Torque
(g.cm Max)
Rotor
Inertia
(g.cm²)
Motor
Length
(mm)
Leads No.Motor
Weight
(Kg)
57HS41-20041.82211.23.22101204140.45
57HS41-10041.85.415.49.55.52101204140.45
57HS41-20041.82212.252101204140.45
57HS51-15041.82.41.51.63.88.23602755140.65
57HS51-20041.82.421.2393602755140.65
57HS51-20061.82211.673602755160.65
57HS56-15041.85.71.53.81213.54003005640.7
57HS56-30041.82.8530.952.8124003005640.7
57HS56-20061.83.621.82.894003005660.7
57HS64-30041.83.931.32.2155003806440.8
57HS76-20041.88.624.316.2246804807641
57HS76-30041.82.730.93.5206804807641
57HS76-40041.82.440.62.2206804807641
57HS82-30041.84.231.45227005108241.2
57HS82-40041.8340.753.5207005108241.2
57HS100-30041.83314.525100068010041.4
57HS112-30041.83.931.36.530120080011241.7
57HS112-35041.82.453.50.7328120080011241.7
Above only for representative products, products of special request can be made according to the customer request.

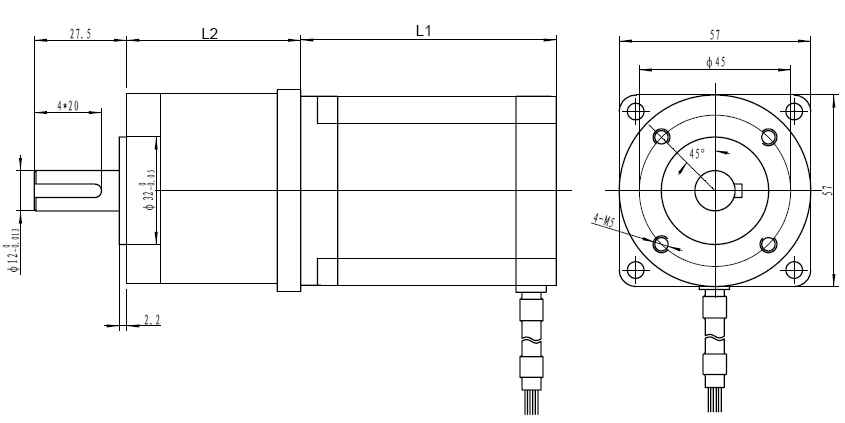

Dimensions(mm)
